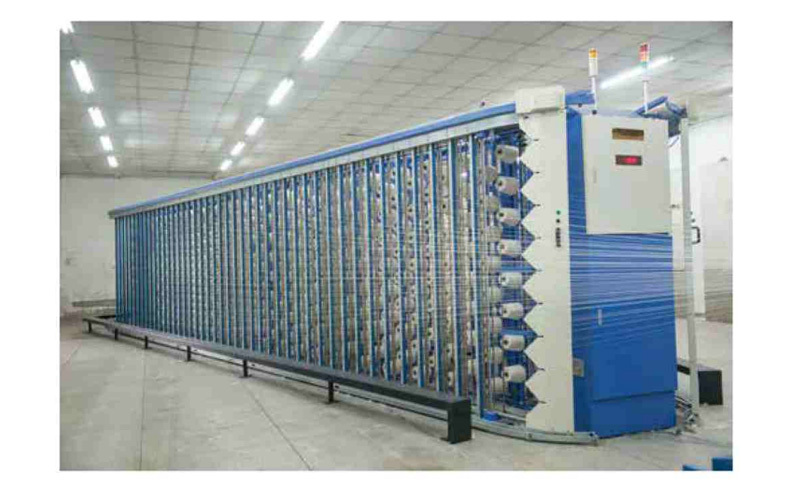

Big V Circulating Creel
E-mail: sheenystargroup@163.com
Tel: +8618857580062
Categories:
- Technical parameter
-
- Commodity name: Big V Circulating Creel
Big V-shaped recirculated bobbin creel isassorted with direct warping machine forchopped fiber.Its advantages include shortercreel body,no thread carrier between frameand creel,especially adapted for somechopped fibers which are sensitive to friction,working under low tension and high speed,befavorable to reduce tension difference of yarnand end breakage when waping.
General Overview
Big V-shaped recirculated bobbin creel isassorted with direct warping machine forchopped fiber.Its advantages include shortercreel body,no thread carrier between frameand creel,especially adapted for somechopped fibers which are sensitive to friction,working under low tension and high speed,befavorable to reduce tension difference of yarnand end breakage when waping.Theinterleaving creel optimizes the spaceutilization.The inner side of v-shaped creelcould store bobbin,which is convenient foroperationThe bobbin changng time is shortso that can save idle period for warpingmachine.This kind of bobbin creel is especiallyfit for high speed warping.
Cut-off device
The yarn cutter can cut off yams upon the change ofyarn batch.The yar cutter is provided with the electricalblade and cuts off all yarns with movement of creel in onecycle.(patented technology)Main specifications
Column distance
(mm)Layer distance
(mm)The maximum drum distance
(mm)Number of layers
(mm)Number of spindle
240 240 230 9 504 576 648 720 792 864 936 1008 1080 1152 1224 1296 270 255 8 448 512 576 640 704 768 832 896 960 1024 1088 1152 305 265 7 392 48 504 560 616 672 728 784 840 896 952 1008 350 278 6 384 432 480 528 576 624 672 720 768 816 864 435 305 5 320 360 400 440 480 520 560 600 640 680 720 Number of column 28 32 36 40 44 48 52 56 60 64 68 72 Column distance
(mm)Layer distance
(mm)The maximum drum distance
(mm)Number of layers
(mm)Number of spindle
320 240 230 9 378 432 486 540 594 648 702 756 510 864 918 972 270 260 8 336 384 432 480 528 576 624 672 720 768 816 864 305 295 7 336 378 420 462 504 546 588 630 672 714 756 350 340 6 324 360 396 432 468 504 540 576 612 648 435 365 5 300 330 360 390 420 450 480 510 540
