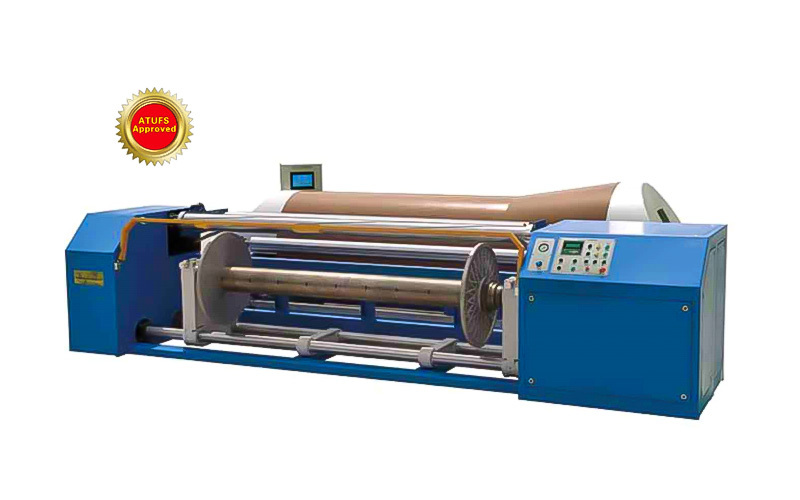

LX215C Integral Warp-rebeaming Machine
E-mail: sheenystargroup@163.com
Tel: +8618857580062
Categories:
- Technical parameter
-
- Commodity name: LX215C Integral Warp-rebeaming Machine
Work width: 2300～4800(mm)(could be made per the customer's demand)
Main specifications
Work width: 2300～4800(mm)(could be made per the customer's demand)
Beam disc diameter: 800(mm)、1000(mm)、1250(mm)
Warping speed: 0～600(m/min)
Beaming speed: 0～100(m/min)
Deviation of linear speed: ±2%
Braking distance: ≤2(m) (at the speed of 300m/min)
Beaming tension: ≤6000(N) (at the beaming speed ≤50m/min)
Drum diameter: 1026(mm)
Cone Lenth: 1010(mm)
Cone angle: 9°
Stripe wiring speed: 0.001～9.999(mm/r) (stepless)
Deviation of stripe follow-up: 0.02%
Distance between space reed and the drum: Adjustable
Positioning of cone starting point: Automatic
Automatic: Automatic
Stripe width: 0.1～999.9(mm) (The length should not be longer than the guide roller)
Spindle space: 250x250(mm)、280x280(mm) (could be made per the customer's demand)
Spindle numbers: 640,720,800,960ends (Could be adjusted according to customers requirements)
Input voltage: 3x380V(±10%)
capacity: 30(KVA)
Warping motor power: 7.5(KW)
Beaming motor power: 15(KW)
Strip traverse motor: 1.5(KW)
Warping and beaming frame weight: 4500(kg)
Creel weight: 2500(kg)
