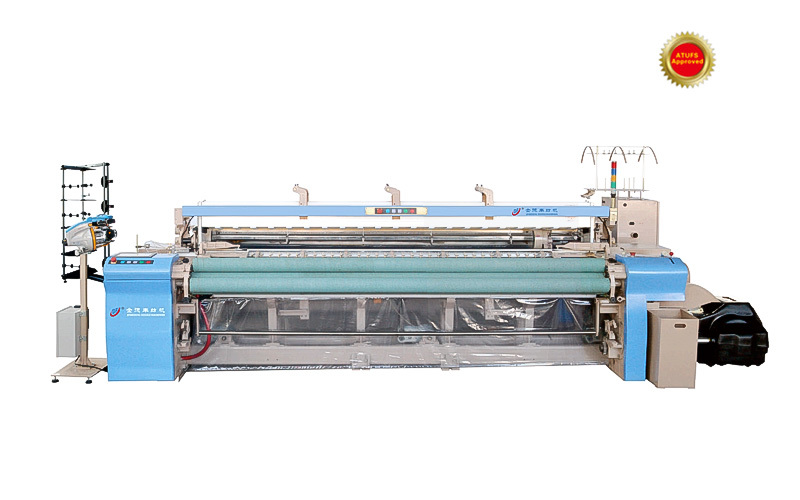

LX-9000 Series Air Jet Loom
E-mail: sheenystargroup@163.com
Tel: +8618857580062
Categories:
- Technical parameter
-
- Commodity name: LX-9000 Series Air Jet Loom
Leading gas circuit design,energy saving can be up to 20%-30%
► Leading gas circuit design,energy saving can be up to 20%-30%
► Pneumatic smooth selvage design,one loom double width cloth,greatly reduceproduction cost and increase efficiency
► 6 linkage beating-up more convenient for weft insertion,high speed,high efficiency&energy saving
► Outside positive let off,simple and convenient for adjustment and maintenance
► Electronic pressure detection air pressure changes display on monitor directly
► With wireless networks for group management
► New style electrical system to meet various fabric weaving
Product Features
LX-9000 air jet loom adopts properly structured and stable box-type wall board structure,multiple supporting and counter weight balanced weft beating system to improve the stability and beat weft yarn tightly in high running speed.Equipped with high speed electromagnetic valve,optimal gas circuit control system and adopt fixed main nozzle+swing main nozzle+auxiliary nozzle in high speed filling insertion to save 20% energy.The ELO&ETU configuration can make the user input weft density via monitor screen,no need to replace weft density gear and realize variable weft density weaving,also expand weaving range.With many advantages of low gas consumption,simple operation,easy maintenance and high quality & reasonable price. It is the ideal equipment for textile manufacturers to develop high-grade fabric,increase fabric quality,reduce labor cost,reduce environmental pollution and increase economic benefits.
Main technical parameters
Reed space: 150,170,190,210,230,280,320,340,360,380cm
Shedding: crank,cam,dobby or jacquard shedding
Weft feeder: electronic weft feeder with 1-8 color
Heald frame: 4-16 pcsBeating shaft: 4-bar or 6-bar beating up
Selvedge: raw edge or air tuck in selvedgeLet off: electronic
Take up: mechanical or electronicSpeed: 500-1300 rpm
