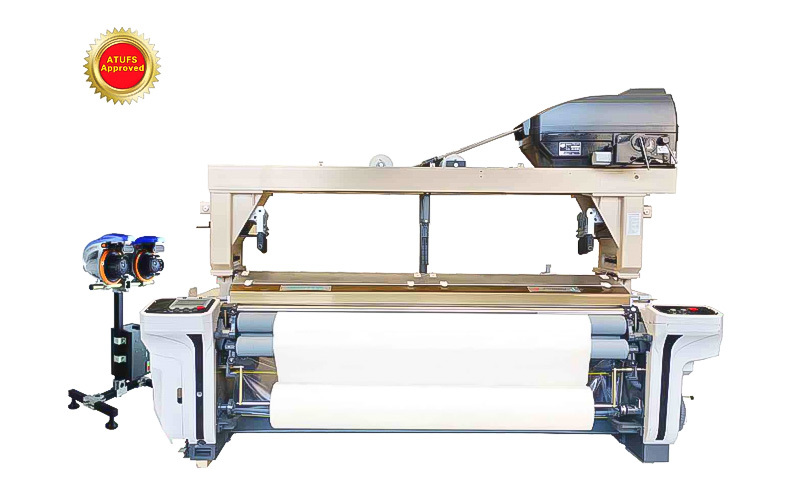

LX-408 Series Heavy-duty Water Jet Loom
E-mail: sheenystargroup@163.com
Tel: +8618857580062
Categories:
- Technical parameter
-
- Commodity name: LX-408 Series Heavy-duty Water Jet Loom
LX-408 heavy duty water jet loom combined with the advancement of ZW405 and the whole machine comprehensive improvement of a new model water jet loom.
Product Features
LX-408 heavy duty water jet loom combined with the advancement of ZW405 and the whole machine comprehensive improvement of a new model water jet loom.
The frame of the whole machine is fully designed and the beam support area is expanded,greatly improved anti-vibration performance and perfect stability.The cross-sectional area of let off system improves the ability of the loom to adapt to high weft density and high gram weight fabrics, which is applied in the production of medium and high-grade fabrics.
This model machine can be optional mechanical or electronic weft insertion system with single,double,three,four or six nozzles as per customers’ actual demand.
The shedding type can be plain,cam and dobby shedding.
Main technical parameters
Reed width: 150-450CM
Shedding type: plain,cam or dobby shedding
Nozzle quantity: single,double,three,four or six nozzle
Weft insertion rate: max. 2280m/min
Wefting type: mechanical or electronic
Pump quantity: single or double pump
Weft density: 5-60/cm
Running speed: 500-1000rpm
Heald frame: 4/6/8/10/12/16pcs(as per customers’ actual demand)
Let off and take up: mechanical or electronic(variable weft density weaving can be realized)
