- Commodity name: LX-8100 Series High Speed & Heavy Duty Water Jet Loom

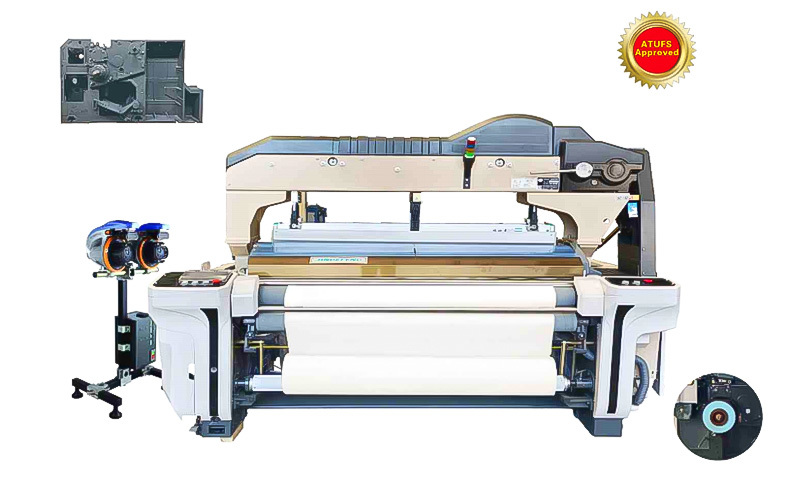

LX-8100 series water jet loom adopts integrated wallboard or weighted middle wallboard and reference to the advantages of many other models and developed a new high speed loom.
Product Features
LX-8100 series water jet loom adopts integrated wallboard or weighted middle wallboard and reference to the advantages of many other models and developed a new high speed loom.The machine stability has greatly improved,vibration and running noise to a minimum with more stable weft insertion performance,reasonable shedding and beating structure to suitable for wide
width and high weft density fabric weaving.Main technical parameters
Reed width:
150,170,190,210,230,260,280,300,320,340,360,380,400,450CM
Shedding type: plain,cam or dobby shedding
Nozzle quantity: single,double,three or four nozzle
Wefting type: mechanical or electronic
Pump quantity: single or double pump
Weft density: 5-60/cm
Running speed: 500-1200rpm (the actual speed as per fabric specifications)
Weft insertion ratio: max. 2280m/min
Heald frame: 4/6/8/10/16pcs(as per customers’ actual demand,cam loom max. 10 pcs)
Let off and take up: mechanical or electronic(variable weft density weaving can be realized)
Motor power: 2.2-4.5kw
Suitable yarn type: polyester expansion yarn,strong twisted yarn,rayon,extension yarn,no pulp yarn,nylon original yarn,nylon no pulp yarn,imitation cotton yarn,elastic filament,etc.
